Kockney Koi KF 5000v Multi Bay Filter

Free-standing, four bay gravity and pump fed filters

At a glance...
  • Gravity and pump fed multi bay filters
  • Can handle Koi ponds of around 5000 l in size
  • Four chambers with media to perform mechanical and biological filtration
In stock
Price Match

The Kockney Koi KF5000 Vortex is a multi-chamber filter that is perfect for use in a Koi pond up to 5000 litres in size. However, used in lightly stocked or fish-free ponds it can cope with a larger volume of water.

Freestanding, the KF5000 V filter is crafted from durable fibreglass for long term, reliable performance. Four chambers contain media to remove all traces of debris, waste and even pollutants from the water, returning simply clean and clear water to the pond.

Using a vortex system, the filter churns the water into a whirlpool as it enters the filter. Large pieces of waste are broken down, making them easier to remove. This prolongs the life of the media and reduces the maintenance needed.

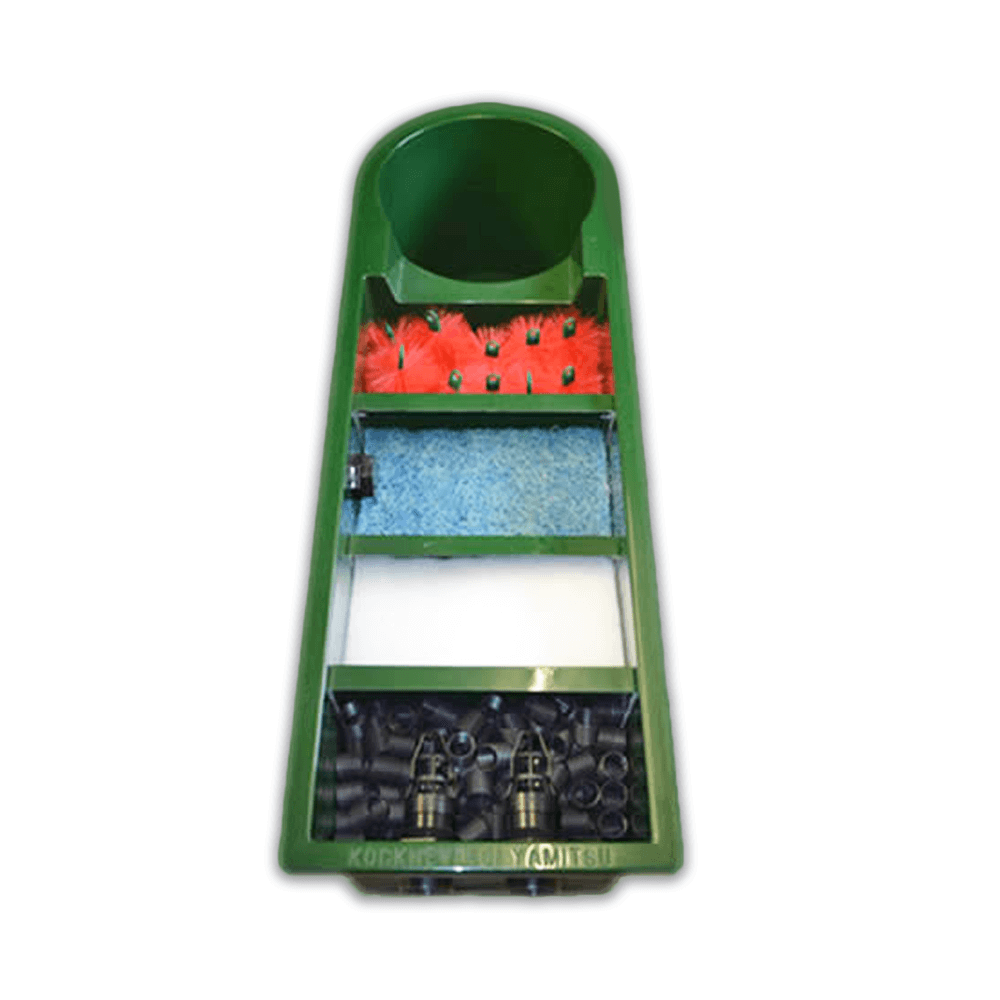

Chamber 1-Filter brushes remove particles of debris

Chamber 2-Japenese matting removes tiny particles of waste and promotes the growth of healthy bacteria on the large surface area

Chamber 3- Filter wadding further cleanses the water, catching the tiniest pieces

Chamber 4-Flocor biological media has a huge surface area for exceptional bacterial filtration. Excess nitrates and more are removed.

Choose a good quality filter pump to support the pump-fed filter.

Key Features:

  • It is suitable for Pump or Gravity feed. Fitted with 3" inlet and 2" outlet.
  • 5000-V (4 Bay) 51" x 17" x 19" Deep.
  • Vortex system
  • Four chambers including all media to perform mechanical and biological filtration
  • Maximum flow rate 3,000 litre per hour.
  • Inlet size 3" - Outlet 2" solvent. Can also be used as a pump-fed filter by reducing inlet with the Yamitsu Solvent Pipe Reducers.
  • Three drainage points - (Accepts 1.5" solvent weld pipe for remote drainage) - NOTE: waste drains are now located on the opposite side to that shown on the image, above.
  • Lid not included (discontinued)


Product KF5000 Pump Fed (with media) KF5000 Gravity fed (with media)
Guarantee 1 year 1 year
Max flow rate 3,000lph 3,000lph
Outlet 2" 2"
Inlet 3" 3"
Pond size 5,000l 5,000l
Dimensions 130 x 44 x 49cm 130 x 44 x 49cm
